Improved microphone sensitivity.
Return to Stornophone 5000 family

This modification increases the microphone sensitivity.

Connect a 12k resistor over existing 27k R903, and a 220nF capacitor over existing 22nF C904.
Experiment with values to get best performance, if necessary.
(original idea : OZ1EM)

LED-Smeter

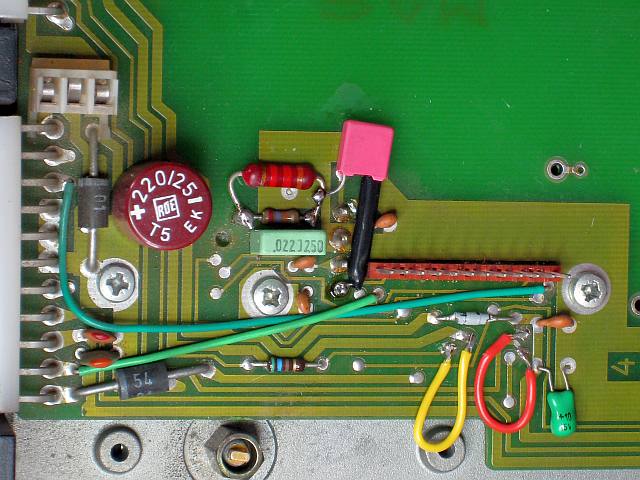

Yellow and red jumpers shown are used, if no toneequipment is used.
